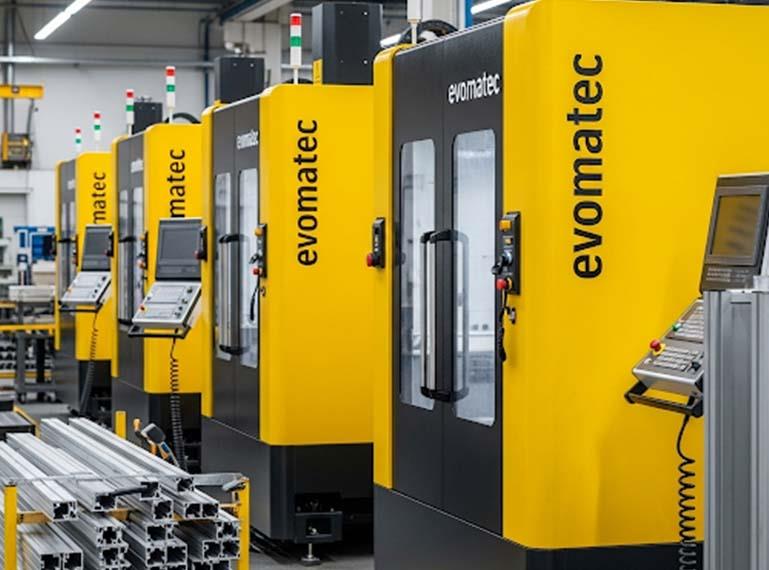

CNC Machining Centers for Aluminium Profiles
Precision, Productivity, and the Evolution of Aluminium Profile Processing
1.1 Introduction
In the modern age of advanced manufacturing, few innovations have transformed the industrial landscape as profoundly as CNC machining centers. When paired with aluminium profiles, these computer-controlled systems unlock new frontiers in precision, speed, and customization. The widespread use of aluminium in architectural structures, automotive components, and high-tech industries has created a surging demand for efficient and accurate processing methods. CNC machining centers for aluminium profiles are the answer to this demand — and their capabilities go far beyond traditional milling or drilling.
This chapter offers a comprehensive exploration of these advanced machines: their structure, operation, historical development, and their essential role across multiple sectors.
1.2 The Significance of Aluminium in Modern Industry
Aluminium has long been celebrated for its unique combination of physical and chemical properties:
Lightweight (approximately one-third the weight of steel),
High strength-to-weight ratio,
Corrosion resistance,
Excellent thermal and electrical conductivity,
Ease of recycling, and
Formability through extrusion.
These properties make aluminium profiles the material of choice for countless applications, ranging from aerospace fuselages and solar panel frames to facade systems, automated conveyor lines, and medical device enclosures. However, aluminium's potential can only be fully realized when paired with equally advanced processing technology — and this is where CNC machining centers excel.
1.3 Understanding CNC Machining Centers
1.3.1 What is CNC?
CNC stands for Computer Numerical Control, a system in which the movements of machinery are precisely controlled by computer-generated code. In a machining center, this allows for fully automated control over:
Tool path (movement across X, Y, and Z axes),
Spindle speed,
Feed rate,
Tool selection, and
Cycle time.
The CNC controller interprets G-code or other programming formats to execute operations with micron-level accuracy, consistently across thousands of identical parts.
1.3.2 What Is an Aluminium Profile?
An aluminium profile is an extruded cross-section made from aluminium, typically designed for a specific structural or functional role. These profiles may be simple (flat bars, square tubes) or complex (multi-channel frames, T-slot connectors). Their shapes are created by forcing heated aluminium through a custom-designed die — a process known as extrusion.
Profiles are most commonly available in lengths of 6 meters, though custom lengths are possible. Because of the precise tolerances required in many applications, they often need secondary processing such as cutting, drilling, slotting, threading, or face milling.
1.4 Anatomy of a CNC Machining Center for Aluminium Profiles
1.4.1 Frame and Base
The machine is typically built on a rigid, vibration-dampening base made of cast iron or steel. This ensures dimensional stability during high-speed operations and minimizes tool chatter — a crucial factor when working with long, thin aluminium profiles that are prone to vibration.
1.4.2 Axis Movement
Most machining centers designed for aluminium profiles feature 3 to 5 servo-driven axes:
X-axis: typically the length of the aluminium profile (up to 6,000 mm or more),
Y-axis: cross-travel for drilling or milling along the width,
Z-axis: vertical movement of the spindle for depth operations.
Advanced models may also include:
A-axis (rotation around X), or
C-axis (rotation around Z),
enabling angled drilling, multi-face machining, or complex geometries without repositioning the part.
1.4.3 Spindle and Tool Changer
At the heart of every CNC machine lies the spindle. High-speed spindles, often capable of 15,000–24,000 RPM, are ideal for the relatively soft but sticky nature of aluminium. Tool changers (ATC) allow the machine to automatically switch between:
Drills,
End mills,
Countersinks,
Taps, and
Saw blades (in models designed with cutting capabilities).
Some high-end models integrate a servo-controlled saw blade, typically 600 mm in diameter, that retracts and extends as needed, allowing both cutting and machining operations in a single setup.
1.4.4 Clamping and Workholding
To ensure repeatability and accuracy, profiles are held in place by pneumatic or hydraulic clamps. These may be static or programmable, moving along the bed to accommodate parts of varying sizes. Some systems feature intelligent clamping systems that automatically adapt based on the length and orientation of the profile.
1.4.5 Control System and User Interface
Modern machining centers are equipped with touchscreen control panels, often running intuitive software that supports:
CAD/CAM integration,
Macro programming,
Job scheduling, and
Remote diagnostics.
Interfaces are designed for usability, making it possible even for less-experienced operators to handle sophisticated production cycles safely and efficiently.
1.5 Types of CNC Aluminium Machining Centers
1.5.1 3-Axis Gantry Machines
Basic yet powerful,
Ideal for straight-line drilling, slotting, and light milling,
Often used in window and door production.
1.5.2 4-Axis and 5-Axis Systems
Allow the profile or the spindle head to rotate,
Enable angled holes, bevels, and face milling without reclamping,
Ideal for aerospace, automotive, or custom industrial components.
1.5.3 Double-Head Cutting & Machining Centers
Combine sawing and machining in one cycle,
Often feature dual stations for faster throughput,
Useful for large production volumes.
1.6 Applications Across Industries
1.6.1 Façade and Fenestration
Architectural aluminium profiles require clean, precise cuts, drilled holes, and slots for bolts, fasteners, and gaskets. CNC machines enable exact repetition of these patterns across hundreds of elements — crucial for large-scale projects like curtain walls and structural glazing systems.
1.6.2 Automotive and EV Production
In electric vehicle manufacturing, aluminium plays a central role in chassis design, battery frames, and crash structures. CNC machining allows for weight-optimized, high-strength aluminium components with superior dimensional control.
1.6.3 Solar and Renewable Energy Systems
Solar panel frames and brackets demand high throughput and consistent dimensional accuracy. Machining centers can process these profiles in mass, with automated cutting, hole drilling, and notch placement.
1.6.4 Robotics and Industrial Automation
Modular aluminium framing is used extensively for machine enclosures, conveyors, and fixtures. CNC machining centers allow for custom designs to be implemented rapidly, with bolt-hole placement and bracket mounts machined in a single pass.
1.7 Advantages of CNC Machining for Aluminium Profiles
Unmatched Precision: Dimensional tolerances of ±0.1 mm or better,
Automation-Friendly: Perfect for smart factories and Industry 4.0 environments,
Flexibility: Changeover between different jobs is fast and requires minimal downtime,
Speed: Cycle times are reduced through multi-tool and multi-axis coordination,
Cost-Efficiency: Reduced labor costs and material waste,
Data Tracking: Machine feedback can be used to optimize maintenance and productivity.
1.8 Challenges and Considerations
Despite their benefits, CNC machining centers also present challenges:
Initial Investment Cost: High-quality systems require significant upfront investment.
Training Requirements: Operators and programmers must be skilled or trained.
Maintenance: High-speed spindles, servo motors, and precision rails require consistent upkeep.
Chip Management: Aluminium chips can clog tools or damage finishes if not handled properly.
1.9 Future Trends in Aluminium CNC Machining
AI-Assisted Programming for automatic toolpath optimization,
Digital Twin Integration for simulation and job verification,
Hybrid Systems combining additive manufacturing with subtractive CNC,
Robotic Workpiece Loading for lights-out production,
Cloud-Based Monitoring for real-time performance analytics.
1.10 Conclusion
CNC machining centers for aluminium profiles represent the pinnacle of manufacturing evolution in lightweight structural engineering. These intelligent, high-performance systems merge mechanical robustness with digital precision — making them the backbone of industries that demand speed, accuracy, and adaptability.
Whether you're fabricating components for a solar farm, assembling a next-gen electric vehicle, or constructing the glass-clad skyscrapers of tomorrow, CNC machining centers are the silent engines of progress behind the aluminium framework of the modern world.
